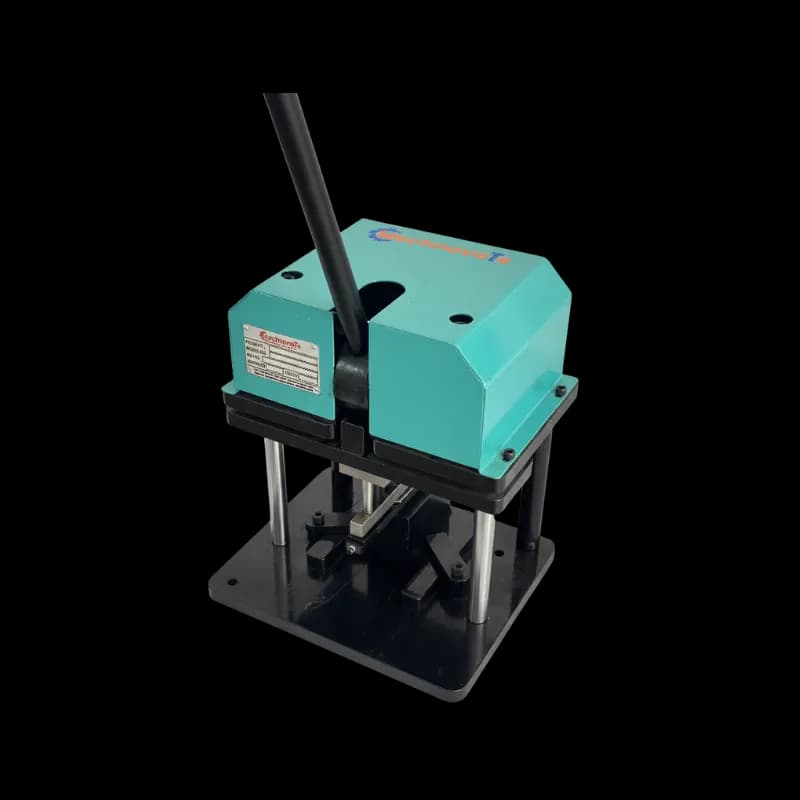

Manual Punching Machine for Aluminium and UPVC
The Manual Punching Machine (Model: MEMMPST1) is the most economical entry point for aluminium profile punching. Features a High-Leverage Handle — an extended, ergonomic lever designed to maximize power with minimal effort, allowing smooth precise punches with reduced operator fatigue even during long production runs. The True-Center Profile Security system uses heavy-duty clamps to lock the extrusion into the exact center of the punch zone, preventing material drift and reducing scrap. This mechanical advantage design means the operator can punch clean holes through aluminium profiles up to 1.5mm thickness using body weight alone — no compressed air or electricity required. The compact 300mm x 250mm x 300mm footprint and 35 kg weight make this machine ideal for small workshops, startup fabricators, or as a backup punching station in larger facilities. Die customization is available for specific profile systems and hole patterns. The all-mechanical design means zero running costs beyond die replacement.
Key Features
Applications
Where This Machine Excels
Window Hardware Holes
- Handle mounting holes
- Lock mechanism cutouts
- Hinge pocket punching
- Drainage slot punching
Profile Processing
- Aluminium profile punching
- uPVC profile notching
- Multi-point lock holes
- Espagnolette mounting holes
Industrial Applications
- Sheet metal punching
- Custom die-cut patterns
- Ventilation slot punching
- Cable tray perforations
Key Industries Served
- Window & door manufacturers
- Aluminium fabrication units
- Sheet metal workshops
- HVAC duct fabricators
Specifications
Technical Specifications
Reviews
What Our Customers Say
"We are mostly an interior design firm and recently added aluminium window fabrication. Took the manual punching machine as suggested by Mechnovate. Its a simple machine, anyone can learn it in a day. For our volume of 4-5 windows per day its more than enough. The only thing — manual operation gets tiring if you have thick profiles. But for the price, you cant complain. Does what it says."
"I am a small fabricator in Agra. Bought manual punching machine because electricity is not always reliable in our area. The machine works without power which is its biggest advantage for me. Build is sturdy, frame doesnt shake during operation. For the price I paid, very good value. Only wish is it came with more die options included. Had to buy additional dies separately."
"We sell industrial tools in Udaipur and started keeping Mechnovate machines based on local demand. Manual punching and manual copy router are popular here among small fabricators. Build quality is noticeably better than other brands in similar price range. Mechnovate gives proper dealer margin and supports with marketing material. Two of our customers have given positive feedback so far. Good partnership."
"Bought the manual punching machine when we started our aluminium window division. Simple machine, does the basic punching well. For a company like ours that does 3-4 windows a day, its sufficient. The handle operation requires some force on thicker profiles which can be tiring by end of day. Considering upgrading to pneumatic next year. Machine quality is good for the price. Mechnovate was responsive whenever we called."
FAQ
Frequently Asked Questions
Common questions about the Manual Punching Machine for Aluminium and UPVC.
Pricing Info
Manual Punching Machine for Aluminium and UPVC Price & Availability
Starting at ₹ 27,000 | August 2026
Place Your Order
Buy Manual Punching Machine for Aluminium and UPVC
Submit your order enquiry — our team calls you within 2 hours to confirm
Explore More
Related Punching Machines
2 Station Pneumatic Aluminium Punching Machine
Model: MEPPPST2
View Details →
1 Station Pneumatic Aluminium Punching Machine
Model: MEPPPST1
View Details →
Single Head Cutting Machine for Aluminium and UPVC
Model: MEPCCSH1
View Details →
Pneumatic Copy Router Machine for Aluminium and UPVC
Model: MEPCR Series
View Details →About Manual Punching Machine for Aluminium and UPVC
The Manual Punching Machine (Model: MEMMPST1) is the most economical entry point for aluminium profile punching — no electricity, no compressed air, just mechanical leverage. The High-Leverage Handle design amplifies operator force to punch clean holes through aluminium profiles up to 1.5mm thickness using body weight alone. The True-Center Profile Security system ensures every hole lands exactly where intended.
The MEMMPST1 uses a purely mechanical design — an extended ergonomic lever provides the mechanical advantage needed to punch through aluminium profiles without any powered assistance. The True-Center system uses heavy-duty clamps to lock the extrusion into the exact center of the punch zone, preventing the material drift that causes scrap in freehand operations. At 300mm x 250mm x 300mm and just 35 kg, this is the most compact and portable punching machine in Mechnovate's range. The all-mechanical design means zero running costs beyond die replacement. Die customization is available for specific profile systems and hole patterns, including Domal, Jindal, and European extrusions.
Key Features — Manual Punching Machine for Aluminium and UPVC
Zero Running Costs
No electricity, no compressed air — the machine runs on operator force alone. The only ongoing cost is die replacement when the cutting edge wears.
High-Leverage Handle
The extended ergonomic lever multiplies operator force to punch through 1.5mm aluminium with minimal effort. Reduces fatigue during long production runs.
True-Center Profile Security
Heavy-duty clamps lock the extrusion into the exact center of the punch zone automatically. Eliminates the guesswork and measurement errors of manual positioning.
Ultra-Compact & Portable
At just 35 kg and 300mm x 250mm footprint, this machine can sit on a workbench and be moved by a single person. Perfect for mobile and site-based work.
How It Works — Working Principle
The operator loads the aluminium profile into the True-Center clamps, which automatically center the profile over the die. The operator then pulls the High-Leverage Handle in a smooth downward arc — the lever mechanism multiplies the applied force to drive the punch through the profile. The handle returns to its starting position via a return spring, and the operator slides the profile to the next hole position. The purely mechanical action produces consistent results without the pressure fluctuations possible with pneumatic systems.
Ideal For
- ✓Startup workshops with zero infrastructure budget
- ✓Mobile fabrication at remote construction sites
- ✓Small fabricators doing 3-10 windows per day
- ✓Backup punching station in larger workshops
- ✓Workshops in areas with unreliable power supply
Maintenance Tips — MEMMPST1
- ●Oil the lever pivot bearing weekly with light machine oil to maintain smooth handle action and prevent squeaking.
- ●Check the return spring tension annually. A weak spring makes the handle return sluggish and slows production rhythm.
- ●Inspect the True-Center clamp faces for aluminium buildup monthly. Clean with a brass brush to maintain centering accuracy.
- ●Store the machine with the handle in the up position to prevent spring set (permanent compression) over time.
Why Choose Mechnovate Manual Punching Machine for Aluminium and UPVC?
- ✓Precision-engineered punching machine for aluminium and uPVC window profiles — handles all standard Indian profile systems including Domal, Jindalinium, and European systems.
- ✓Manufactured in Ahmedabad, Gujarat with rigorous quality standards. Every machine is tested before dispatch with actual aluminium and uPVC profiles to ensure cut quality and dimensional accuracy.
- ✓Factory-direct pricing with no distributor markup. GST invoice provided. Same price for buyers across India — whether in Delhi, Mumbai, Bangalore, Chennai, or any other city.
- ✓24/7 after-sales support via WhatsApp and phone. Spare parts stocked in Ahmedabad and dispatched same-day. On-site warranty repairs by Mechnovate technicians.
- ✓1-year comprehensive warranty covering parts and labour. On-site installation and operator training available on request.
Applications of Manual Punching Machine for Aluminium and UPVC
🏢 Window Hardware Holes
- ●Handle mounting holes
- ●Lock mechanism cutouts
- ●Hinge pocket punching
- ●Drainage slot punching
🏭 Profile Processing
- ●Aluminium profile punching
- ●uPVC profile notching
- ●Multi-point lock holes
- ●Espagnolette mounting holes
🔧 Industrial Applications
- ●Sheet metal punching
- ●Custom die-cut patterns
- ●Ventilation slot punching
- ●Cable tray perforations
🎯 Key Industries Served
- ●Window & door manufacturers
- ●Aluminium fabrication units
- ●Sheet metal workshops
- ●HVAC duct fabricators
Technical Specifications — MEMMPST1
| Parameter | Value |
|---|---|
| Model | MEMMPST1 |
| Die Type | Standard / Customizable |
| Operation | Manual Lever (High-Leverage) |
| Clamping Type | Mechanical Clamp |
| Machine Weight | 35 kg |
| Power Required | None (purely mechanical) |
| Profile Thickness | Up to 1.5 mm |
| Number of Stations | 1 |
| Profile Compatibility | Aluminium & uPVC |
| Machine Size (L × W × H) | 300 × 250 × 300 mm |
Frequently Asked Questions — Manual Punching Machine for Aluminium and UPVC
Can this machine punch uPVC profiles?
The machine is optimized for aluminium profiles up to 1.5mm thickness. uPVC can be punched but the material tends to crack rather than shear cleanly at room temperature. For uPVC punching, we recommend the pneumatic models.
How does it compare to the pneumatic punching machines?
The manual machine is more affordable and needs no power source, but is limited to 1.5mm aluminium (vs 2.5mm for pneumatic models). For workshops under 10 windows per day with thin profiles, the manual machine is the most economical choice.
What dies are included?
A standard set of round and oval dies for common drainage and hardware holes is included. Custom dies for specific profile systems are available within 5-7 days.
Buying Guide — Punching Machine
When choosing a punching machine for your aluminium and uPVC window fabrication workshop, consider your daily production volume, the profile systems you work with, and the specific operations you need to perform. Mechnovate manufactures machines for workshops of all sizes — from small fabricators doing 5–10 windows per day to large production facilities processing 100+ windows daily.
Every Manual Punching Machine for Aluminium and UPVC shipped from our Ahmedabad factory includes a 1-year comprehensive warranty covering parts and labour. On-site installation by a trained Mechnovate technician and operator training are available on request. Spare parts and consumables are stocked in Ahmedabad and dispatched same-day to any location in India.
Need help choosing the right punching machine?
Call +91-9265699061 or email [email protected] for a custom quote based on your workshop requirements.
