Solving 45-Degree Mismatch: Automatic Double Head Cutting Machine Guide
Fixing the 45-Degree Mismatch in Delhi's Aluminium Fabrication Workshops
In our fifteen years of engineering at Mechnovate, the most common call we get from Delhi-based fabricators involves the dreaded 'V-gap' in 45-degree miters. A mismatch of even 0.5mm can ruin the aesthetic and structural integrity of an entire window frame. This issue is rarely the profile itself; it is almost always a result of mechanical instability in your aluminium profile cutting machine. To eliminate this, you must move beyond the limitations of a standard aluminium cutting machine 12 inch and understand the physics of high-speed cutting. In this guide, we analyze why precision engineering is the only cure for production gaps.
Automatic Double Head Cutting Machine Price India: Value vs. Performance
When evaluating an automatic double head cutting machine price India, most owners focus on the initial capital outlay rather than the cost of rejection. An entry-level upvc machine price list might look attractive, but a low-mass machine frame will vibrate during the cut, leading to jagged edges.
- Massive Machine Bed: High-end models use a heavy-duty steel base that dampens the 2800-3200 RPM motor vibrations.
- Blade Diameter: A 450mm or 500mm TCT saw blade provides a cleaner entry and exit than a 12-inch blade, especially for multi-chambered profiles.
- Clamping Pressure: Variable pneumatic clamping (6-8 bar) ensures the profile doesn't shift during the saw blade's advance.
- Indexing Accuracy: High-precision linear guide rails ensure that the moving head locks into the exact millimeter every single time.
For a best upvc window making machine for small business, the ROI is realized within 8 months through a 15% reduction in profile wastage and a 40% increase in daily frame output.
Technical Blueprint: Why Your Aluminium Cutting Machine 12 Inch is Failing You
If you are using a manual aluminium cutter machine 12 inch, your tolerance for error is dictated by human fatigue. In our Okhla facility testing, we found that manual single cutting leads to a 3-degree variance over an 8-hour shift. This is unacceptable for modern precision engineering standards. The automatic double head cutting saw for aluminium profiles solves this by synchronizing both cuts.
We recently consulted for a workshop in Mayapuri that was seeing a 12% rejection rate. By upgrading to an Automatic Double Head Cutting Machine with a hydro-pneumatic feed system, we reduced their waste to under 2%. The engineering reason is simple: the hydro-pneumatic cylinder provides a constant feed rate, preventing the blade from 'grabbing' the material, which is a common cause of 45-degree mismatch.
Comparison: Standard vs. CNC uPVC Window Fabrication Machine Price in India
| Feature | Standard Double Head Saw | CNC Automatic Double Head Cutting Machine |
|---|---|---|
| Accuracy | +/- 0.2mm | +/- 0.05mm |
| Angles | 45°, 90° | 22.5° to 135° Automatic |
| Operator Skill | Skilled required | Semi-skilled sufficient |
| Production Cap | 60-80 frames/day | 120-150 frames/day |
| Integration | Standalone | Connects to ERP/Cutting Lists |
Investing in a uPVC Window Making Machine that utilizes CNC technology might have a higher automatic upvc window plant cost India, but it eliminates the need for manual measurements, which is where 90% of fabrication errors originate.
Step-by-Step Guide to Perfect 45-Degree Miters
To ensure your upvc windows manufacturing machine delivers perfect joints, follow this engineering protocol we developed at Mechnovate:
- Check the Pivot Point: Ensure the pivot bearing of the saw arm has zero play. Even 0.1mm of lateral movement results in a visible gap.
- Verify Blade Squareness: Use a machinist's square to check the blade against the back fence at the 90-degree position before adjusting the 45-degree stops.
- Optimize the Feed Speed: For thick-walled aluminium profiles, slow the feed rate. For uPVC, a faster feed prevents the plastic from melting and distorting the edge.
- Calibrate the Digital Display: If your machine has a digital readout, calibrate it weekly against a certified master tape to account for any thermal expansion in the machine bed.
- Maintenance of the Air System: Ensure your upvc welding machine and cutters have clean, dry air. Water in the lines causes pneumatic cylinders to stutter, ruining the cut finish.
Common Mistakes in Delhi Workshops

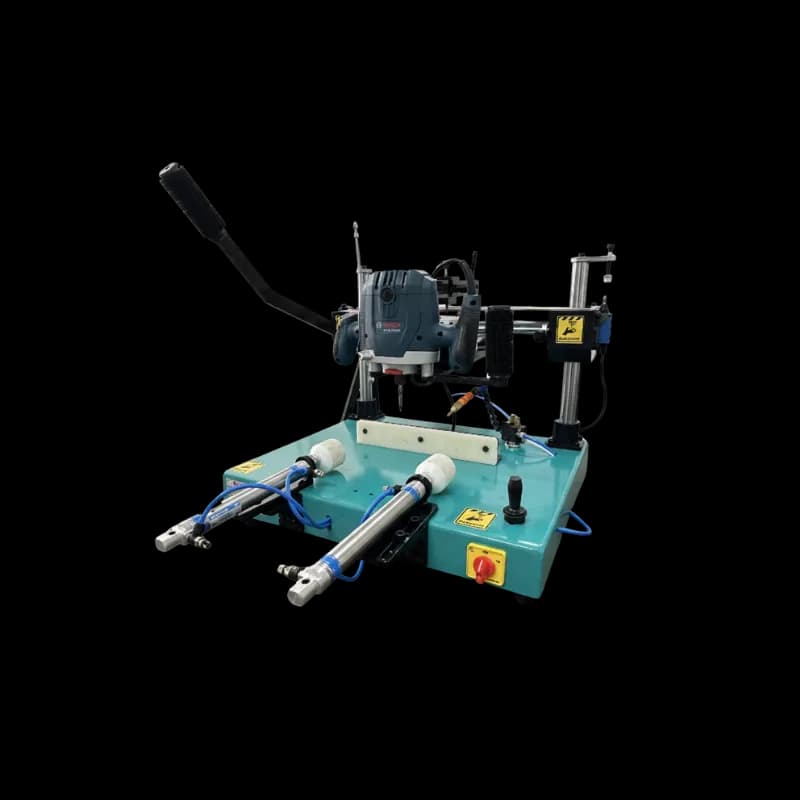

One of the most frequent errors we see in the upvc window manufacturing machines sector is the use of blunt blades. A blunt blade generates heat, which causes the uPVC profile to expand during the cut. Once the profile cools down, it shrinks, and your 45-degree angle is no longer 45 degrees. Always use a high-quality Copy Router Machine and ensure your cutting tools are sharpened every 2000 cuts.
Additionally, many startups try to save money by purchasing a portable upvc window making machine price list setup. While good for onsite repairs, these lack the rigidity needed for a high-volume upvc windows making machine factory. If you are serious about industrial aluminum door manufacturing equipment, stick to stationary, cast-iron based machinery.
Frequently Asked Questions (FAQ)
1. What is the average automatic double head cutting machine price in India?
Prices range from ₹3.5 Lakhs for basic pneumatic models to over ₹15 Lakhs for fully CNC-integrated systems. The price depends on blade diameter, motor power, and the level of automation.
2. Can one machine handle both aluminium and uPVC profiles?
Yes, but you must change the saw blades. Aluminium requires a negative rake angle blade with lubrication, while uPVC requires a positive rake angle blade and usually no lubrication to keep the profile clean for welding.
3. How do I fix a consistent 1mm gap in my 45-degree joints?
Check your back fence alignment first. If the fence is not perfectly perpendicular to the blade's travel path, every miter will be off. Second, check if your profile is 'bowing' due to lack of support on the entry tables.
4. What is the typical power requirement for a double head cutter?
Most industrial-grade machines require a 3-phase, 415V supply with a total power consumption of approximately 4kW to 6kW, including the dust extraction unit.
5. How often should the 45-degree stops be calibrated?
In a high-production Delhi workshop, we recommend a weekly check. Temperature fluctuations can cause metal components to expand and contract, affecting the mechanical stops over time.
